mobile incinerator

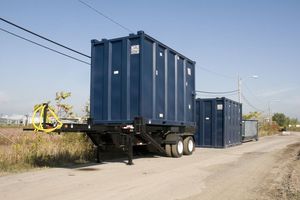

containerized incinerator(10GP)

Product Description







INCINERATOR DESCRIPTION

The Model is for up to 300kgs capacity per batch load and will burn at around 55kgs per hour.

The unit has top loading design and has a heavy duty refractory cement lining for maximum heat retention. Unit have large top lid for easy loading, and specially designed front ash door, for ash removal.

This unit operates at over 1100°C in the primary chamber to ensure complete combustion. This model also benefits

from a heavy duty secondary chamber and burner which ensures a complete re-burn of any smoke and emissions and a 0.5 second gas retention time.



PRIMARY CHAMBER

Heavy-duty steel casing

High quality refractory lining and insulation

Large full size top load door and liquid retention sill

1 x diesel oil fired ignition burners operated on/off

SECONDARY CHAMBER

Heavy-duty steel casing

High quality refractory lining and insulation

1 x diesel oil fired ignition burners operated on/off

CHIMNEY

Heavy-duty stainless steel casing

1.5m length

0.6m refractory lined stack

CONTROL PANEL

Control of 1 burner

Timer control 0- 12 hours

Integral fan timer control

Temperature Monitoring

Thermostatic Control

Automatic Control

Cycle time set up

ANCILLARIES

Operating and maintenance manuals

Spares list

CONTAINERISATION

incinerator fully installed inside of 10 ft ISO certified container

3,5 kwA electricity generator, 1000 litres fuel tank

Incinerator mounted on the silenblock cushion.
